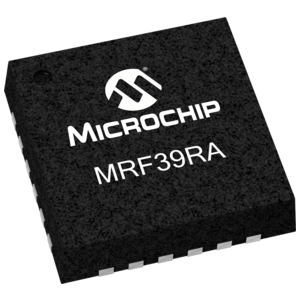

The MRF39RA is a low power RF receiver capable of operation over a wide frequency range, including the 433, 868 and 915 MHz Sub-GHz frequency bands.  It is a highly integrated circuit that minimizes external components while maintaining maximum design flexibility.  All major RF communication parameters are programmable and most of them can be dynamically set.  The MRF39RA offers the unique advantage of programmable narrow-band and wide- band communication modes without the need to modify external components while satisfying European ETSI and US FCC regulations.  The MRF39RA is ideal for battery-powered applications due to its low power consumption, 100 nA in sleep mode (typ) and 16mA receive mode, and operating range from 3.6V down to 1.8V.  Additionally, the high sensitivity of -120 dBm enables longer-range applications.

  Covers wide frequency range 290 to 1020 MHz

  FSK, GFSK, MSK, GMSK and OOK demodulation

  Fully integrated synthesizer with a resolution of 61 Hz

  Low current: Rx = 16 mA, 100 nA in sleep mode

  FSK Bit rates up to 300 kbps

  High Sensitivity: down to -120 dBm at 1.2 kbps

  >115 dB Dynamic Range RSSI

  Packet engine with CRC, AES-128 encryption and 66 byte FIFO

  Built-in temperature sensor and Low Battery indicator

  Wide Operating Voltage Range: 1.8 V to 3.6 V

  Small form factor 24 lead 5x5 mm QFN

  Complies with US (FCC) and Canada (IC) Standards
