MIC4120 and MIC4129 MOSFET drivers are tough, efficient, and easy to use. The MIC4129 is an inverting driver, while the MIC4120 is a non-inverting driver. The MIC4120 and MIC4129 are improved versions of the MIC4420 and MIC4429.They are capable of 6A (peak) output and can drive the largest MOSFETs with an improved safe operating margin. The MIC4120/4129 accept any logic input from 2.4V to VS without external speed-up capacitors or resistor networks. Proprietary circuits allow the input to swing negative by as much as 5V without damaging the part. Additional circuits protect against damage from electrostatic discharge.MIC4120/4129 drivers can replace three or more discrete components, reducing PCB area requirements, simplifying product design, and reducing assembly cost.Modern BiCMOS/DMOS construction guarantees freedom from latch-up. The rail-to-rail swing capability insures adequate gate voltage to the MOSFET during power up/down sequencing.

  CMOS construction

  Latch-up protected: will withstand >200mA reverse output current

  Logic input withstands negative swing of up to 5V

  Matched rise and fall times of 25ns

  High peak output current at 6A

  Wide operating range from 4.5V to 20V

  High capacitive load drive of 10,000pF

  Low delay time of 55ns typical

  Logic high input for any voltage from 2.4V to VS

  Low equivalent input capacitance (typ.) 6pF

  Low supply current is 450µA with logic 1 input

  Low output impedance is 2.5Ω

  Output voltage swing within 25mV of ground or VS

  Exposed backside pad packaging reduces heat

  ePad SOIC-8L (θJA = 58°C/W)

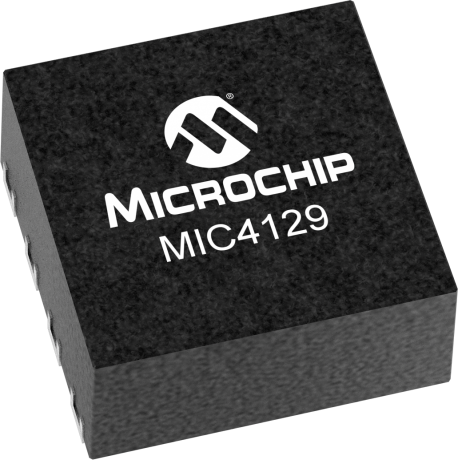

  3mm x 3mm MLF®-8L (θJA = 60°C/W)
