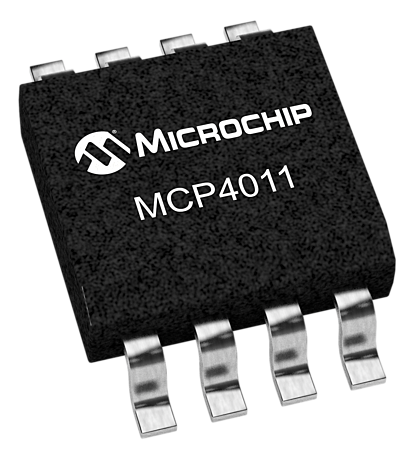

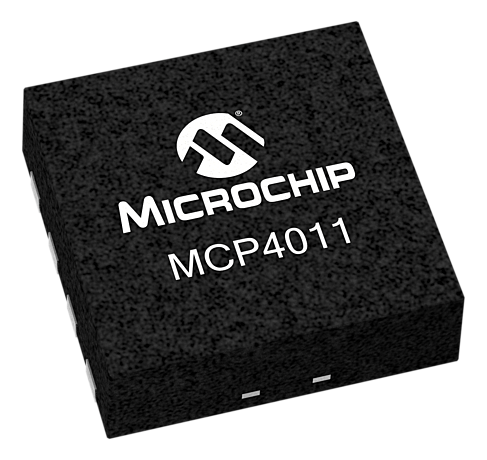

The MCP401X devices are volatile, 6-bit (64 wiper steps) digital potentiometers with a simple up/down serial interface. The MCP401X devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count. The MCP4011 device offers a voltage divider (potentiometer), with all terminals available on pins. The MCP4012 is a true rheostat, with both nodes of the resistor available on pins. The MCP4013 device offers a voltage divider (potentiometer), with one terminal connected to ground. The MCP4014 device is a rheostat mode device, with one terminal of the resistor connected to ground. The MCP401X family of devices are available with resistor values of 2.1kΩ, 5kΩ, 10kΩ and 50kΩ. These devices operate from a single 1.8V-5.5V supply and draw less than 1 µA while operating in the static state.

  Volatile Digital Potentiometer in SOT-23 packages

  64 Taps: 63 Resistors with Taps to VSS and VDD

  Simple Up/Down (U/D) Protocol

  Power-up to midscale

  Resistance Values: 2.1kΩ, 5kΩ, 10kΩ, 50kΩ

  Low Tempco:

  Absolute (Rheostat): <150 ppm (typ.)

  Ratiometric (Potentiometer): <10 ppm (typ.)

  Low Wiper Resistance: 70Ω (typ.)

  Low-Power Operation: 1µA Max Static Current

  Wide Operating Voltage: 1.8V to 5.5V

  Extended Temperature Range: -40°C to +125°C
