The MCP14A0451/2 devices are high-speed MOSFET
drivers that are capable of providing up to 4.5A of peak
current while operating from a single 4.5V to 18V
supply. There are two output configurations available;
inverting (MCP14A0451) and non-inverting
(MCP14A0452). These devices feature low shootthrough
current, fast rise and fall times, and short
propagation delays which make them ideal for high
switching frequency applications.
The MCP14A0451/2 family of devices offer enhanced
control with Enable functionality. The active-high
Enable pin can be driven low to drive the output of the
MCP14A0451/2 low, regardless of the status of the
Input pin. An integrated pull-up resistor allows the user
to leave the Enable pin floating for standard operation.
These devices are highly latch-up resistant under any
condition within their power and voltage ratings. They
can accept up to 500 mA of reverse current being
forced back into their outputs without damage or logic
upset. All terminals are fully protected against
electrostatic discharge (ESD) up to 2 kV (HBM) and
200V (MM).

  High Peak Output Current: 4.5A (typical)

  Wide Input Supply Voltage Operating Range:

  4.5V to 18V

  Low Shoot-Through/Cross-Conduction Current inOutput Stage

  High Capacitive Load Drive Capability:

  2200 pF in 9.5 ns (typical)•

  Short Delay Times: 16 ns (tD1), 19.5 ns (tD2)(typical)

  Low Supply Current: 355 μA (typical)

  Low-Voltage Threshold Input and Enable withHysteresis

  Latch-Up Protected: Withstands 500 mA ReverseCurrent

  Space-Saving Packages:

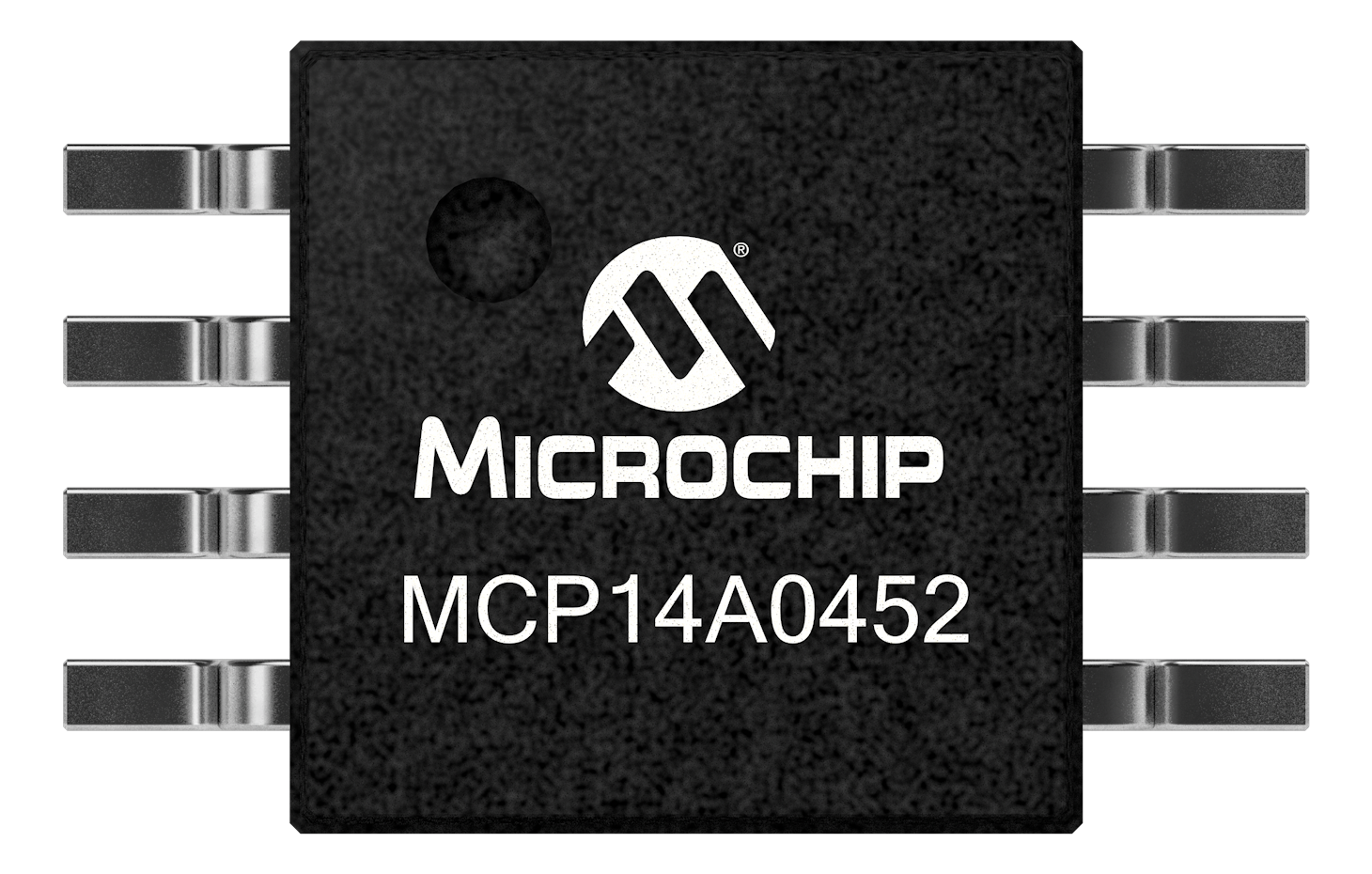

  8-Lead MSOP

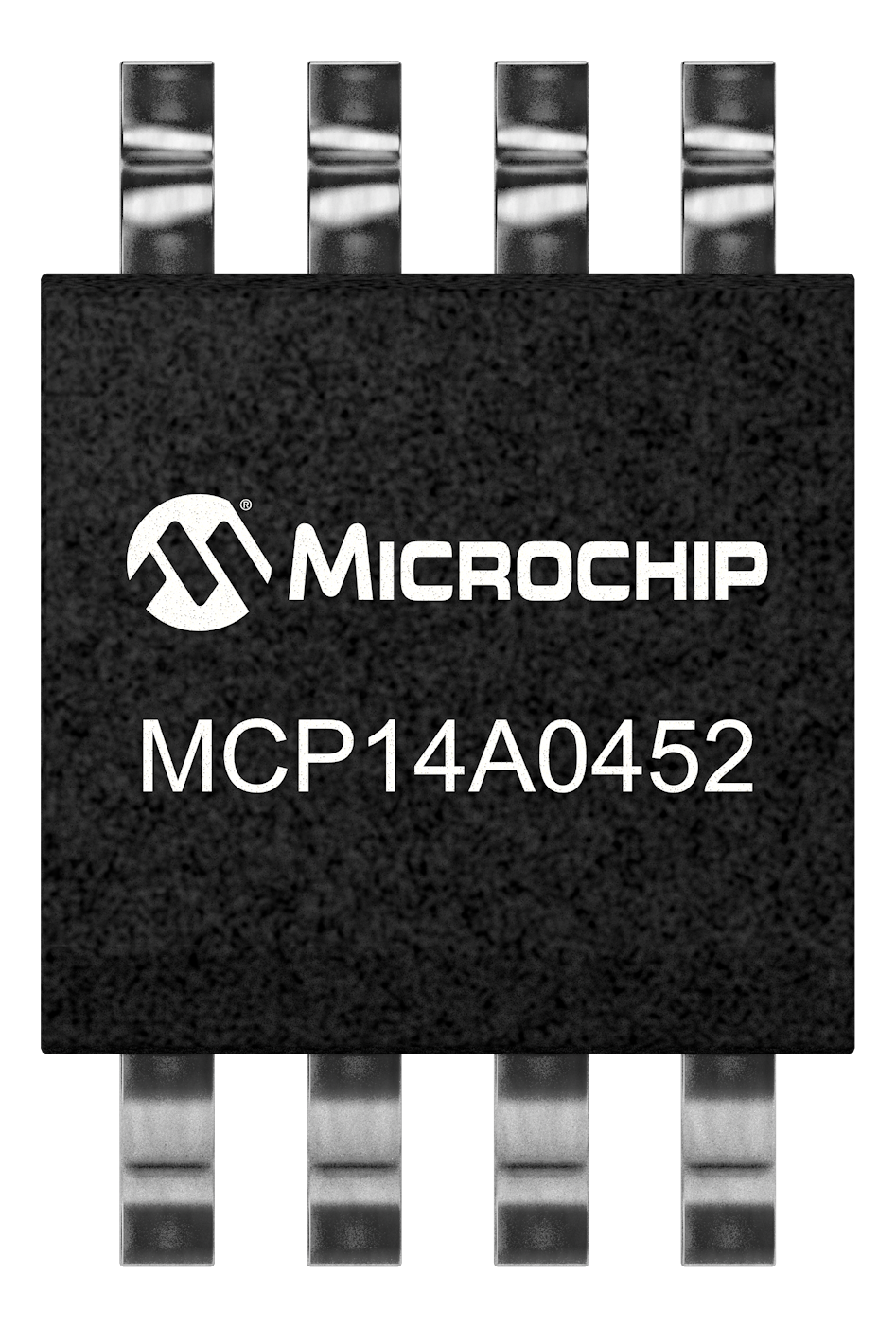

  8-Lead SOIC

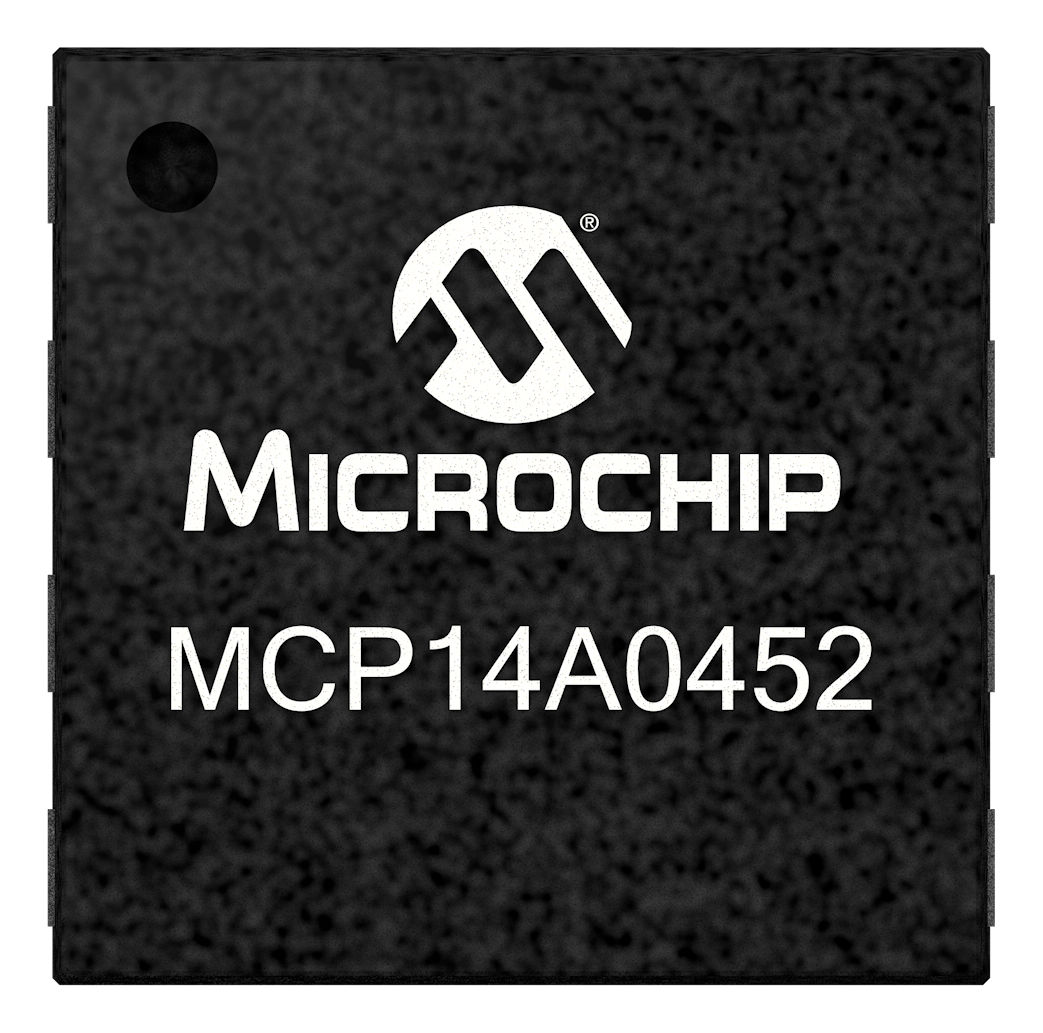

  8-Lead 2 x 2 DFN
