MCP4922 is a dual channel, 12-bit DAC with an external voltage reference and SPI interface. It offers high accuracy and low power consumption and is available in various packages.

The MCP4922 device is a part of the MCP4902/MCP4912/MCP4922 product family, which are dual channel 8-bit/10-bit/12-bit DACs which use external voltage reference (VREF). These devices provide very high accuracy and low noise performance, and are suitable for consumer and industrial applications, such as set point control, offset adjustment and sensor calibration applications. The low power consumption and small package options make these devices very attractive for many portable and battery-powered applications. If one output is needed then the MCP4901/4911/4921 single channel product family can be used.

  12-bit Resolution

  Dual Channel Voltage Output

  2.7V to 5.5V Operation

  Operating Current 350 µA (typ)

  External Voltage Reference Pin

  INL ±2 LSB (typ)

  DNL ±0.75 LSB (max)

  Output Settling Time 4.5 µs

  SPI Interface

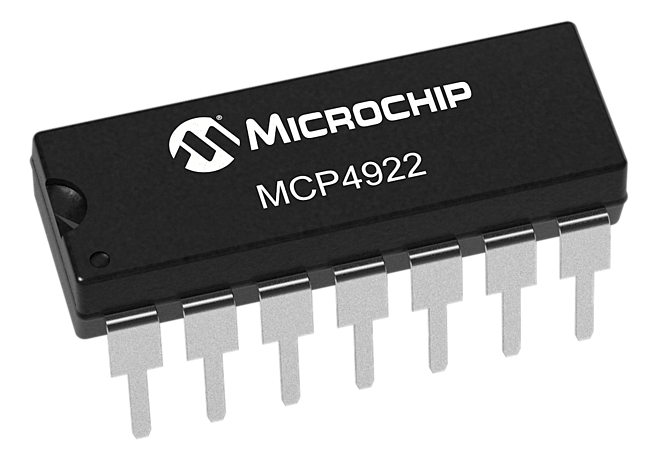

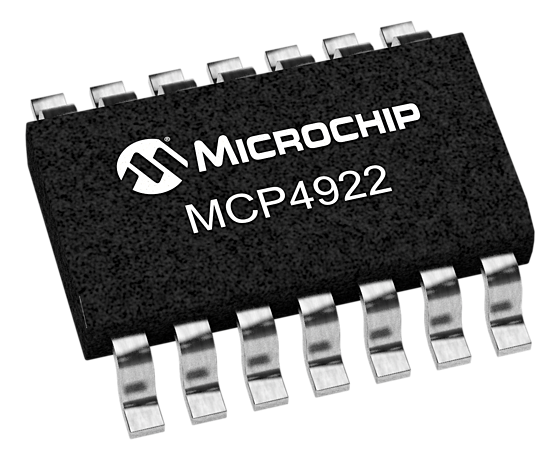

  14-pin PDIP, SOIC, and TSSOP packages

  Temperature Range -40°C to +125°C

  AEC-Q100 Grade 1 quarlified
